GOCCOPRO QS1836

• No darkroom or chemicals: Screens are made with heat, so there's no emulsion to coat, no exposure unit and no washout booth.
• Same detail as the flagship: The same thermal head as the QS2536, with 600 × 1200 dpi imaging and 1,200 × 1,200 dpi perforation density for fine halftones, gradients and small text.
• Accurate registration: Pre-stretched screen masters lock into place, so multi-color jobs line up on press.
• Full-size frames: Accepts frames up to 25 × 36 in., with an image area up to 13.78 × 29.88 in.
• Easy to learn: Print to it from your computer like any printer. Works with both Mac and Windows.
• Prints on almost anything: Fabric, plastic, glass, metal, cardboard and more.

• Apparel shops whose prints are mostly standard chest and full-front sizes.
• Shops replacing a darkroom to save space, water and chemical costs.
• Schools and print studios that want full-size frames and photo-quality screens.

Need a wider image? Compare all five RISO screen makers.

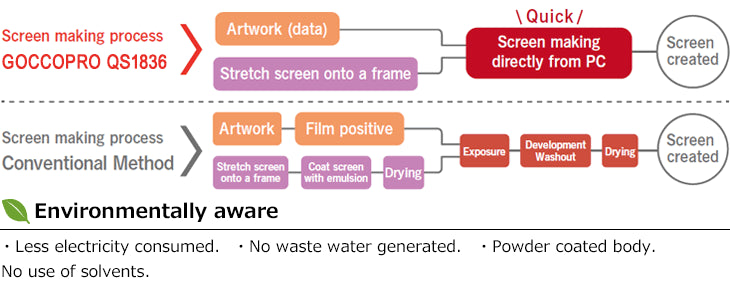

1. Design your artwork in your usual software and print it to the QS1836.
2. Mount a framed RISO screen master on the machine. It locks into place for registration.
3. Image: the thermal head burns your design into the mesh in about 200 seconds.
4. Print: take the screen straight to press. There's nothing to dry or wash out.

• Screen making method: High-speed digital screen making
• Screen frame size (Outer dimensions) (width x length): Min 440mm x 310mm (17.32" x 12.20"). Max 635mm x 914mm (25" x 36") Using with the screen frame retainer plates. 635mm x 922mm (25" x 36.30") Using without the screen frame retainer plates.
• Screen frame thickness: 22mm to 45mm (0.79" x 1.77")
• Image area size (width x length): Min. 10mm x 10mm (0.39" x 0.39"). Max. 350mm x 759mm (13.78" x 29.88") with a frame thickness of 20mm (0.79"). 350mm x 734mm (13.78" x 28.89") with a frame thickness of 45mm (1.77")
• Screen making time: Approx. 200 sec (350mm x 595 mm (13.78" x 23.39") image area size.
• Resolution: 600 dpi x 1,200 dpi (perforation density: 1,200 dpi x 1,200 dpi)
• Memory capacity: 128MB
• Interface: USB 2.0
• Supported OS: Mac and Windows
• Power source: AC100-240V, 50-60Hz, 3.6-1.4A
• Power consumption: Maximum: 300 W. When standing by: 50 W or lower.
• Operating environment: Temperature 15-30 degrees C/ 59-86 degrees F.
• Dimensions (W x D x H): During use: 1,215 mm x 800 mm x 410 mm (47.83" x 31.50" x 16.14")
• Required space (W x D x H): 1,230 mm x 800 mm x 480 mm (48.43" x 31.50" x 18.90")
• Weight: Approx 70 kg (154 lb.)

• 70 mesh : Appropriate for textile printing such as T-shirts and towels, especially printing with coarse-grained ink such as gold ink.
• 120mesh : Appropriate for textile printing. Well-balanced for printing both fine text and solid images.
• 200mesh : Appropriate for fine-quality printing on materials like textiles, plastic, metal etc.
• PINK : Screen masters-colored in pink are to improve visibility of exposed image. Screen performance itself is the same as the above screen masters.
• Premium : Thicker film than standard RISO DIGITAL SCREEN MASTERS ensures high printing durability even without applying HARDENER, making it ideal for use with automatic printing machines.

See frame and mesh sizes on the Frames & Meshes page.

What's the difference between the QS1836 and the QS2536?
Both use the same thermal head and image at 600 × 1200 dpi. The QS2536 has a wider image area (17.99 in. vs 13.78 in.). Choose the QS1836 if your prints fit within 13.78 in. wide.

How long does it take to make a screen?
About 200 seconds for a 13.78 × 23.39 in. image. Smaller images are faster.

Do I need emulsion, a darkroom or an exposure unit?
No. Screens are made with heat, so there's nothing to coat, expose or wash out.

Does it work with a Mac?
Yes, both Mac and Windows.

Do you accept purchase orders?
Yes. Submit one on the purchase order page, or apply for a business account.
